another project

bfd300 · 01-17-08, 10:11 PM

dual motors.........alot of NJ lakes are elec only.thought i'd give this a try

otto

lunker-lander · 01-17-08, 10:20 PM

If you have an engine large enough, Minn Kota makes some TM motor heads that mount right on to the lower unit. Motor has to be fairly large though...

You have before you... The Minn Kota Ripdtide --

http://www.cabelas.com/cabelas/en/te...atchall&N=3238

-Lunk-

bfd300 · 01-17-08, 10:32 PM

the pics are of my boat...i made those motors n mount on the concept of the minn kota and navigators.

otto

lunker-lander · 01-18-08, 06:56 PM

Good job! I was wondering though... Is it rigged to turn along with the big motor; do you turn the large motor, and both shafts turn with it?

-Lunk-

bfd300 · 01-18-08, 08:01 PM

no the motors are only going to be used in lakes that are elec only...we have alot of them here in NJ.when i am on a lake where i can use the outboard the lotors will be removed.i made the wiring quick disconnects and two bolts hold the elec motors to the outboard. here is a link to a video of it.

otto

http://www.youtube.com/watch?v=J6oP8mdfPcs

lunker-lander · 01-18-08, 08:07 PM

No, I mean if you just steer the large motor (on/off), the TM heads turn with it, right?

-Lunk-

bfd300 · 01-18-08, 08:46 PM

oh yea....i can sit at the helm and operate the 5 foward and 2 reverse speeds aswell as steer them.

otto

lunker-lander · 01-18-08, 08:49 PM

Cool. It's always good to think and be ingenuitive!

-Lunk-

bfd300 · 01-18-08, 09:21 PM

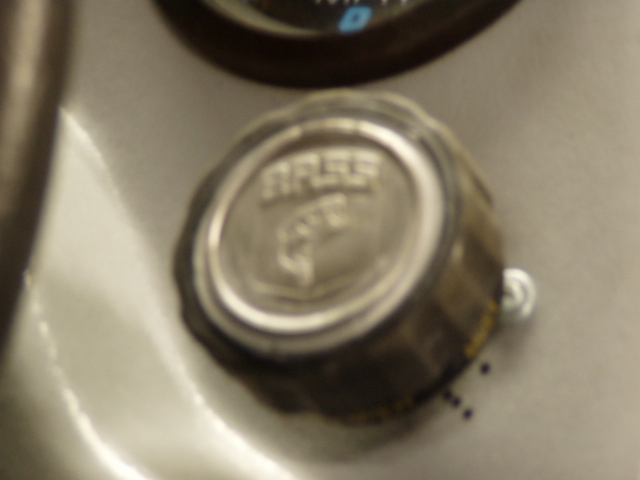

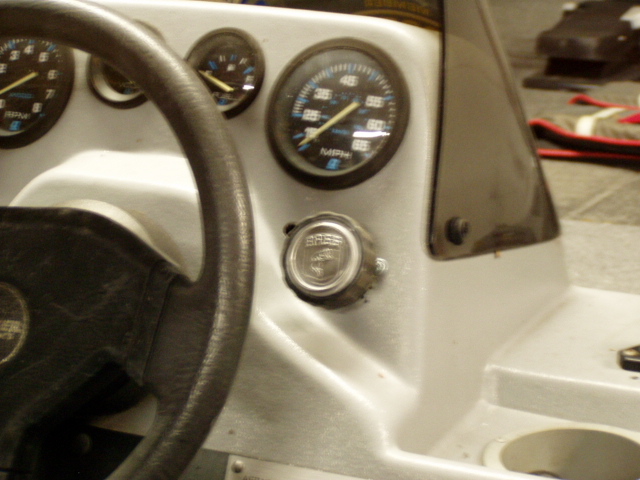

here is the control dial i made.........the rubber wheel part is from a garden hose nozzle haha.behind the dasg i mounted the switch that was originally in the tiller handle of the trolling motor.

otto

lunker-lander · 01-18-08, 10:10 PM

That looks cool. What does it control?

-Lunk-

bfd300 · 01-18-08, 10:17 PM

that controls the 5 foward/2 reverse speeds of the engine mounted elec motors.

lunker-lander · 01-19-08, 11:25 AM

Thats a good idea. So you can control the TM from the console while you're fighting that 10 pounder, right?!?

-Lunk-

1FASTLASER · 01-19-08, 04:13 PM

Excellant use of the ole noggin bud. I fished alot of those lectric only lakes when I libved in PA. Our club just picked them. Spruce Run I could never figure out why it was lectric only. To big ifn the wind picked up. Several others where the same way. LOL you shoulda seen the extra loads of batteries we carried to fish the tourneys on these lakes. Had enough battery power to run New York City for a coup[le hours. LOL

bfd300 · 01-19-08, 06:35 PM

i can control the transom motors for the bow aswell w/ a toggle switch and solenoid.

spruce run is a 10hp max.as far as i can remeber it was thats way.
there are alotttttttt of elec only lakes in jersey..........it stinks.

otto

PowerBass · 01-20-08, 11:42 PM

Quote:

Originally Posted by 1FASTLASER

Excellant use of the ole noggin bud. I fished alot of those lectric only lakes when I libved in PA. Our club just picked them. Spruce Run I could never figure out why it was lectric only. To big ifn the wind picked up. Several others where the same way. LOL you shoulda seen the extra loads of batteries we carried to fish the tourneys on these lakes. Had enough battery power to run New York City for a coup[le hours. LOL

Spruce is 10 HP limit. My home waters
